Install the finisher on the rear door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Saw off all welding pins (1) on the finisher along the molding (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remove welding remnants on door trim panel with a scalpel.
Installing finisher.
NOTE: Welding pins must not protrude from the door trim panel.

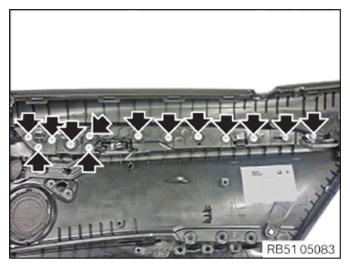

Screw all of the repair screws (arrows) into the door trim panel and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Repair screw to door trim panel
Oval-head screw	Tightening torque	2.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, mount the LED module.
