Replace the spacer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

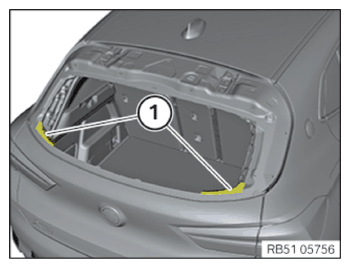

- Remove the spacer (1) completely.
- Use spacer 5x5x20 mm.
Parts: Spacer 5x5x20 mm
- Bond the new spacer (1) centered on the embossed mark.
- Replace the damaged hook and loop tape (Dual Lock tape) (2) on the rear window and the body.
Parts: Velcro fastener (Dual Lock tape)
- Bond the new hook and loop tape (Dual Lock tape) (2) centered on the embossed mark.
- Check the foam seals (1) for damage and replace if necessary.
