Measuring vehicle ride height (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Refer to MOVING VEHICLE INTO NORMAL POSITION .

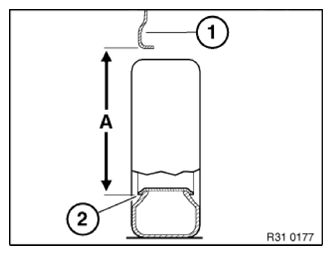

Determine actual ride height (A) - to do so, attach tape measure to rim flange (2) at bottom middle and measure to wheel arch cover (1).
