Replacing wheel bearing (hub) for rear wheel (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Refer to REMOVING REAR WHEEL .

Removal:

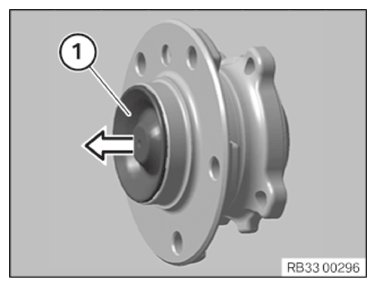

Lever off protective cap (1).

The hub cap is not installed again due to risk of corrosion.

G15170601

Courtesy of BMW OF NORTH AMERICA, INC.

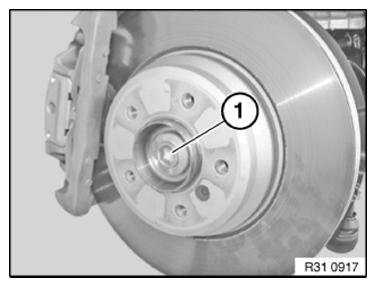

Release collar bolt (1), press brake pedal to floor for this purpose.

G15170602

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Pull the wheel speed sensor (2) out of the trailing arm.

G15170603

Courtesy of BMW OF NORTH AMERICA, INC.

Remove BRAKE DISC .

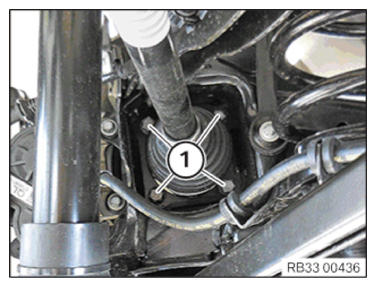

Release screws (1).

Remove wheel bearing.

G15170604

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

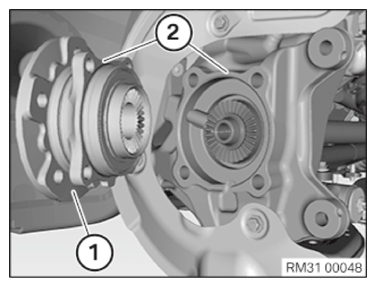

Keep contact surface (2) of wheel bearing (1) and swivel bearing clean and free from grease.

G15170605

Courtesy of BMW OF NORTH AMERICA, INC.

Align new wheel bearing on trailing arm.

Part: Replace screws (1).

Tighten screws (1).

Tightening torque 33 41 1AZ .

G15170606

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLING BRAKE DISC .

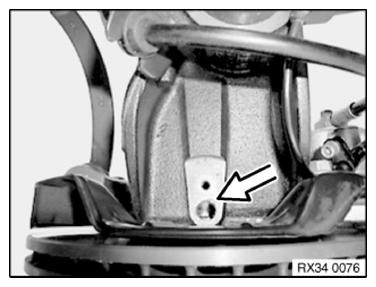

Clean bore hole for pulse sensor and grease with Staburags NBU 12/K lubricating grease (refer to BMW Service Operating Fluids).

CAUTION: Check sensor head prior to installation for damage, replacing if necessary.

G15170607

Courtesy of BMW OF NORTH AMERICA, INC.

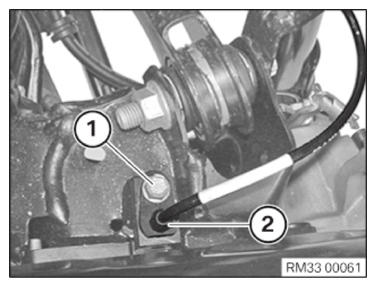

Install the wheel speed sensor (2).

Insert screw (1) and tighten.

Tightening torque, 34 51 5AZ .

G15170608

Courtesy of BMW OF NORTH AMERICA, INC.

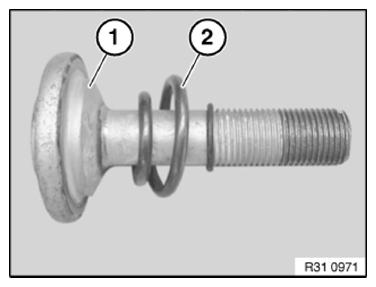

Pay attention to installation position of compression spring (2).
Keep collar bolt and spur gearing of wheel bearing/output shaft clean and free from grease

CAUTION: Following installation note for spur gearing must be observed without fail!

G15170609

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace collar bolt and compression spring.

Tighten collar bolt (1) and compression spring by hand.

G15170610

Courtesy of BMW OF NORTH AMERICA, INC.

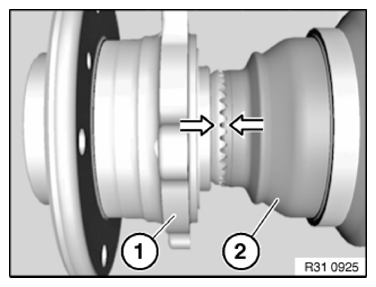

Spur gearing of wheel bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Once a form-fit has been ensured, tighten to final torque.

Tightening torque 33 41 2AZ .

G15170611

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING REAR WHEEL .
