Install intake camshaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Coat all bearing positions (1)
with fresh motor oil.
- Check the fitting sleeves (1)
for correct fit and damage and replace as needed.

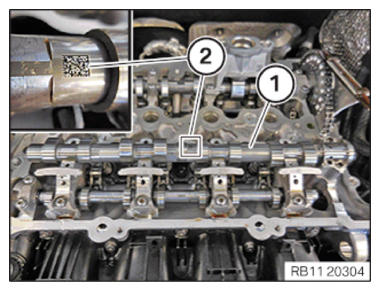

- Insert the intake camshaft (1)
into the cylinder head in such a way that the mark (2)
points up.NOTE: TECHNICAL INFORMATION
The camshaft bearing caps must not be mixed up. The camshaft bearing caps must be installed in the installation position from which they were removed. - Position the intake camshaft bearing cap on the cylinder head.NOTE: The intake camshaft bearing caps are legibly labeled from the intake side with E1, E2, E3, E4 and E.NOTE: Intake camshaft bearing cap E is a thrust bearing.
- Check the tensile strength of the screws for the bearing caps.
The graphic shows the screw with the tensile strength of 8.8 .
- Check the tensile strength of the screws for the bearing caps.
The graphic shows the screw with the tensile strength of 10.9 .
NOTE: TECHNICAL INFORMATION
The camshaft is under tension due to the valve springs. Tighten or loosen each screw on the camshaft bearing caps in the prescribed sequence only by half a turn. Repeat procedure. - Press down the intake camshaft bearing cap and stepwise apply the screws in the order (1) to (10) until hand-tight.
- Join the screws in sequence (1) to (10) in half turns .
- Observe the joining torque .
- Tighten all screws in the sequence from (1) to (10) .
TIGHTENING TORQUE SPECIFICATIONS
| Intake camshaft to cylinder head | ||
| M6 | Tensile strength of screw 8.8 Joining torque |
9.6 Nm |
| tightening torque | 9.6 Nm | |
| M6 | Tensile strength of screw 10.9 Joining torque |
11.8 Nm |
| tightening torque | 11.8 Nm | |
