Removing the side trim panel for the left and right center console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

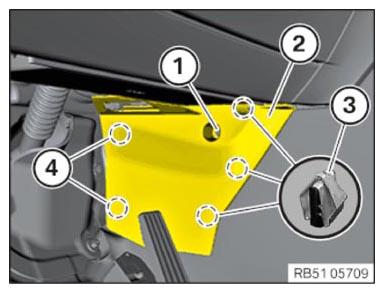

Removing side trim panel for the left center console

Loosen screw (1) .
Release side trim panel (2) for the center console from retaining clips (3) .
Remove side trim panel (2) for the center console from guides (4) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

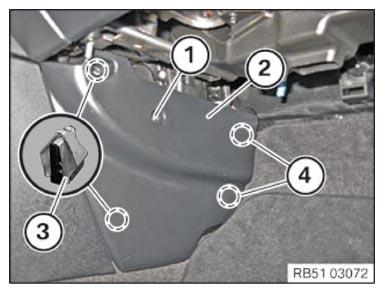

Removing the side trim panel for the right center console

Loosen screw (1) .
Release the side trim panel for the center console (2) from the retaining clips (3) .
Remove the side trim panel for the center console (2) from the guides (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
