Removing seat bench

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Removing the luggage compartment removable panel

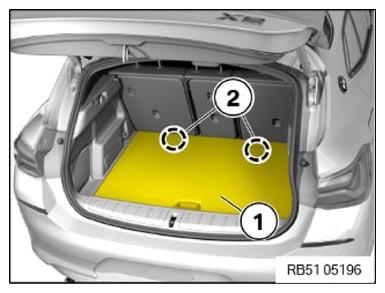

Slightly raise the luggage compartment removable panel (1) at the handle, release from the detents (2) and remove to the rear.

G15388573

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the compact spare wheel

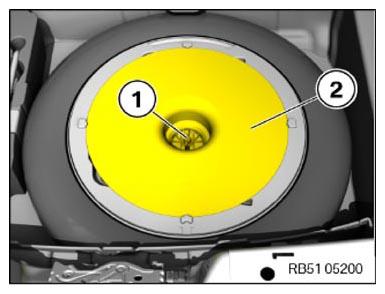

Loosen screw (1).
Remove the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

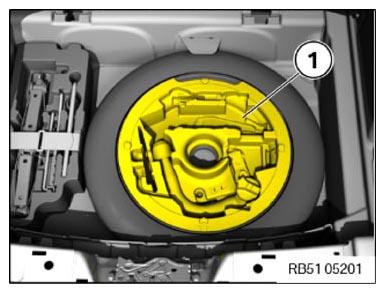

Remove shelf from the emergency wheel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

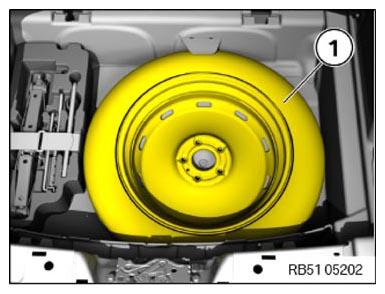

Remove emergency wheel (1).

G15388576

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the vehicle tool kit

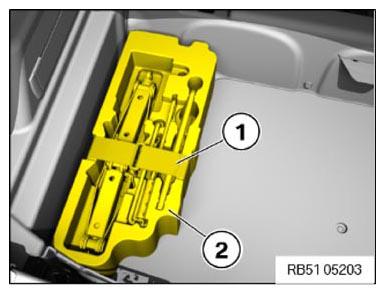

Open the hook and loop tape (1).
Remove the vehicle tool kit (2).

G15388577

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the hook and loop tape for the vehicle tool kit

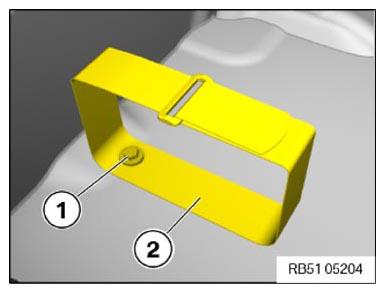

Loosen screw (1).
Remove the hook and loop tape (2).

G15388578

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the luggage compartment floor covering

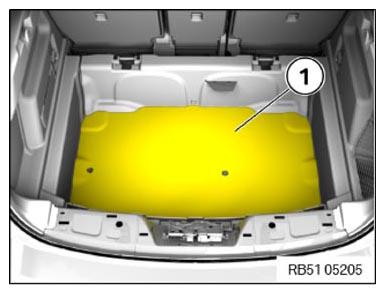

Remove the luggage compartment floor covering (1) upwards.

G15388579

Courtesy of BMW OF NORTH AMERICA, INC.

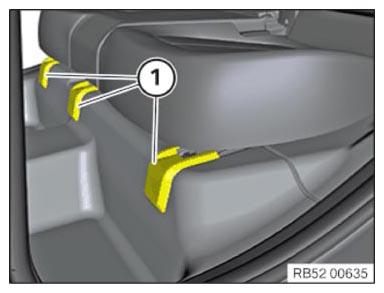

Unclip the covers (1) forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

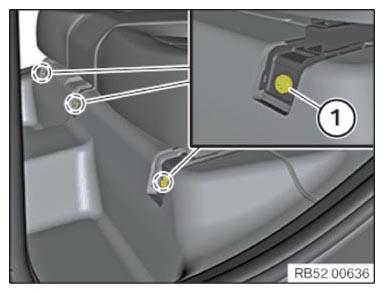

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Cover the door sill using protective covers.

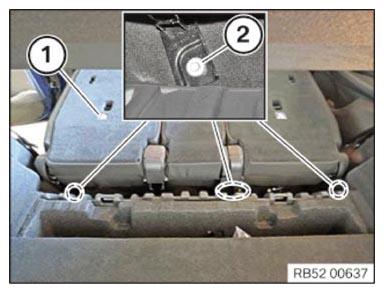

Fold down rear seat backrest (1) on left and right.
Loosen screws (2).
Disconnect existing plug connections where required.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Heavy component .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
Lift out rear seat bench with the assistance of a second person.
