Remove the trim panel of the luggage compartment capping on the left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

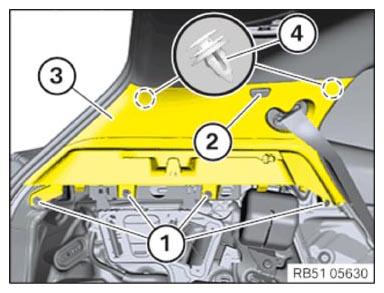

Remove the trim panel of the luggage compartment capping
- Loosen screws (1) .
- Remove the cover (2) with a suitable plastic wedge and release the underlying screws.
- Release the trim panel (3) of the luggage compartment capping from the clips (4) .
- Pull the end fitting out and remove the trim panel (3) of the luggage compartment capping.
