Remove the seat cover with the cushion for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

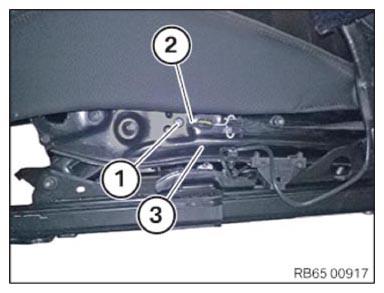

Releasing ground cable of seat occupancy mat (CIS)
- Loosen screw (1).
- Remove the ground cable (2) for the seat occupancy mat on the left side from the seat mechanism (3).

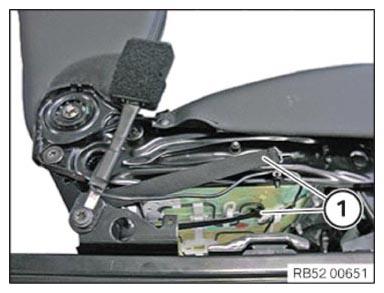

- Detach retaining strap (1) on left and right from seat mechanism.

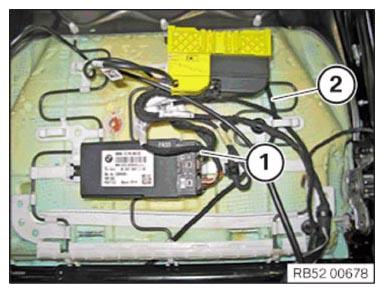

- Version with seat heating only:
- Unlock plug connection (1) and disconnect.
- Feed associated cable (2) back.

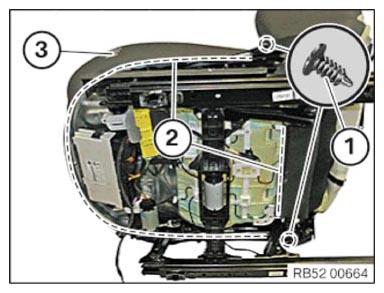

- Loosen the clips (1).
- Detach edge stripping in marked area (2).
- Thread out seat cover (3) with the cushion and remove.
