Remove flywheel (manual transmission)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

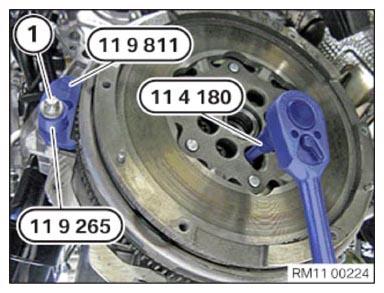

- Position special tool 0 496 171 (11 9 811)
with a standard
5 mm thick washer between the crankcase and the flywheel.
The 5 mm thick washer must be installed between the crankcase and the special tool 0 496 171 (11 9 811) .
- Fix the special tool 0 494 793 (11 9 265) with the transmission bolt (1) .
- Protect the flywheel from falling.
- Unscrew the flywheel bolts with the special tool 0 491 018 (11 4 180) .
- Guide out the flywheel and remove.NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060 .
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

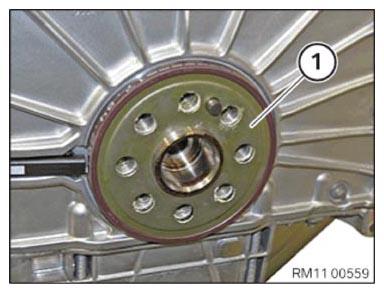

- Feed out the pulse wheel (1) and remove.
- Protect the pulse wheel (1) in a plastic bag from shavings.
- The pulse wheel (1) is magnetic, place the pulse wheel (1) in the correct position.
