Releasing the left and right anti-roll bar from the anti-roll bar link

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

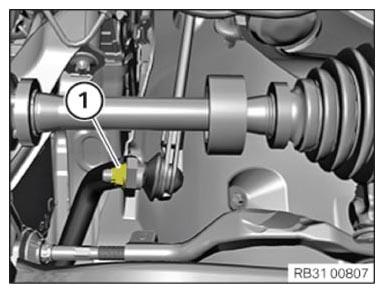

Release the stabilizer from the anti-roll bar link

Loosen nut (1) .
NOTE: Counter-hold at the Torx socket.
Loosen the anti-roll bar link from the anti-roll bar.
