Releasing attachments from the front axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

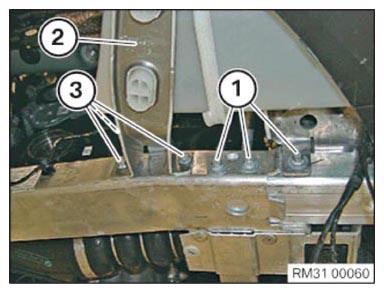

- Only on right side:
Release the screws (3)
and remove the holder for the washer fluid reservoir (2)
.NOTE: Perform the steps on the right and left side.
- Loosen screws (1)
.NOTE: Perform the steps on the right and left side.

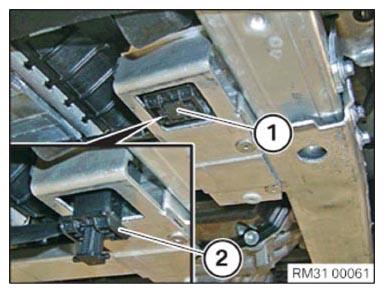

- Unlock the clip (1) of the locking mechanism (2) from the holder for the charge air cooler.
- Completely remove the locking mechanisms (2)
.

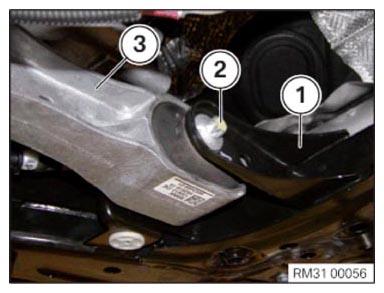

- Release the screw (2)
of the engine mount (3)
at the front axle (1)
.NOTE: Perform the steps on the right and left side.

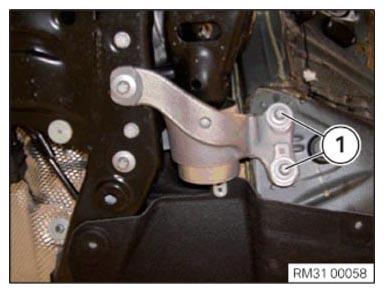

- Loosen screws (1) .
