Prepare for the installation of the exhaust turbocharger

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

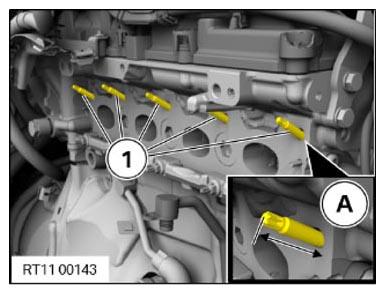

Check the screw-in depth (A) of the upper stud bolt (1) , if necessary screw in the stud bolt (1) further and unscrew it.

TECHNICAL DATA SPECIFICATION

Screw-in depth of upper stud bolts on cylinder head
	Dimension A	32 mm

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, fix the stud bolt (1) with screw locking agent.
ADHESIVE SPECIFICATION

Screw lock Loctite 273, high strength 50 ml, Bottle 83190443083
NOTE:
RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
- Do not use any metal-cutting tools.

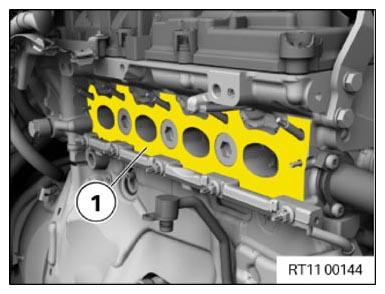

Clean sealing surfaces on exhaust manifold and cylinder head (1) with special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

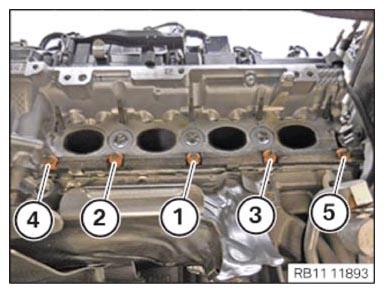

Check the nuts for correct fit in the order from (1) to (5) .

TIGHTENING TORQUE SPECIFICATIONS

Trim strip at the cylinder head
M7	tightening torque	18 Nm

Fig 1: Cylinder Head Nuts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
