63 10.. Light patterns from different low-beam headlight types

The following equipment-specific and model-specific headlight types are used in BMW Group vehicles:

Halogen headlights (low-beam and high-beam headlights)
Xenon headlights (low-beam and high-beam headlights)
LED headlights (low-beam and high-beam headlights)
Laser headlights (high-beam headlight booster, low-beam and high-beam headlights are lit by LEDs)

Every headlight type has its specific transparent screen for the low-beam headlight. In spite of these differences, all headlight types meet statutory specifications.

The images below show transparent screens from the left headlight in the low-beam headlight switch position projected onto a wall (no automatic setting! ).

The transparent screens from the right headlight are the same.

The transparent screens correspond with those in an accumulator box of a headlight adjusting device.

Courtesy of BMW OF NORTH AMERICA, INC.

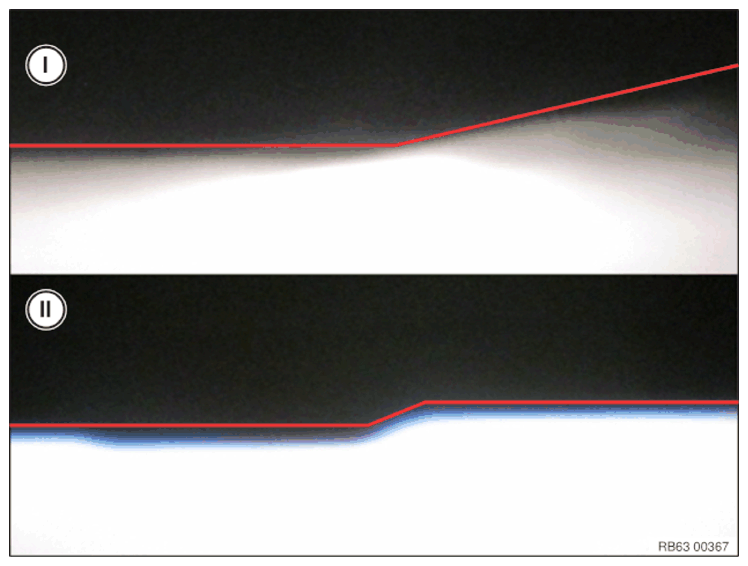

IMPORTANT: For headlight adjustment with electronic headlight adjusting devices, it is essential to determine the light pattern type!

Type I: Light pattern shows a continuous increase in the light/dark boundary.

Type II: Light pattern screen shows a short increase in the light/dark boundary.

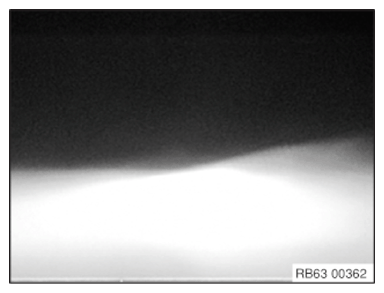

Halogen headlight
Type I

Courtesy of BMW OF NORTH AMERICA, INC.

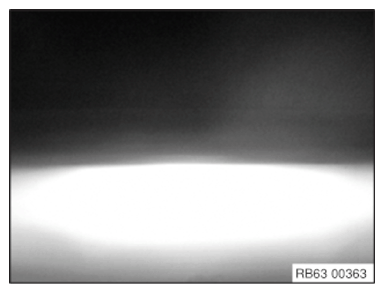

Halogen headlight US version R60 only

Courtesy of BMW OF NORTH AMERICA, INC.

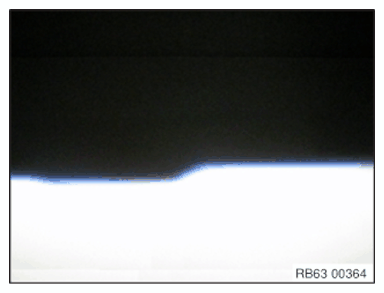

Xenon headlights
Type II

Courtesy of BMW OF NORTH AMERICA, INC.

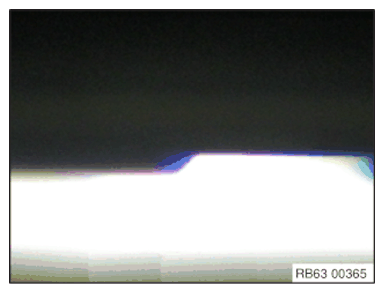

LED headlight e.g. F01, F02, F03
Type II

Courtesy of BMW OF NORTH AMERICA, INC.

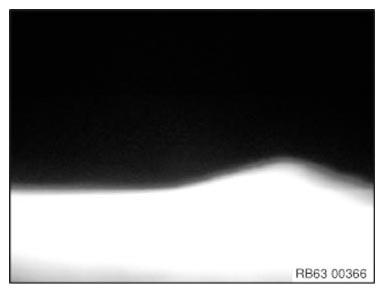

LED headlight e.g. F06, F12, F13, E71
Type I

Courtesy of BMW OF NORTH AMERICA, INC.
