Installing underbody protection at rear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following step (s) must be performed if the listed component (s) is/are installed.

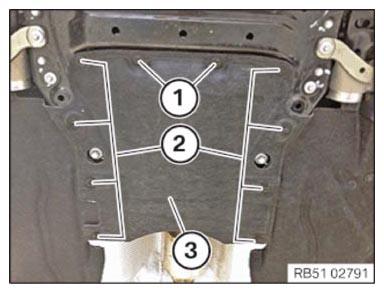

- Install the rear underbody protection (3)
.
- Tighten down screws (1)
and (2)
.
TIGHTENING TORQUE SPECIFICATIONS
| Underbody protection to body |
| screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
