Installing front left and right wheel arch cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Installing the front wheel arch cover

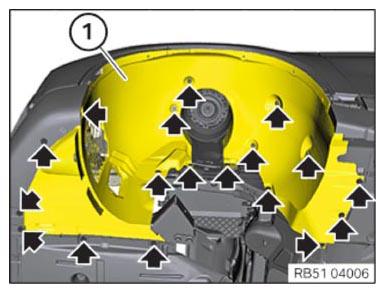

- Guide the wheel arch cover (1) in.
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Plastic nut | Tightening torque | 2.6 Nm |
| Screw | Tightening torque | 2.6 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Screw | Tightening torque | 2.5 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover to body | ||
|---|---|---|
| Plastic nut | Tightening torque | 3 Nm |
Installing the front wheel arch trim
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
NOTE:
Description is for left component only. Procedure on the right side is identical.

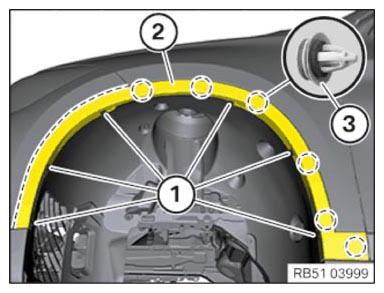

- Check the clips (3)
for damage and replace, if necessary.
The clips (3) must not be damaged or missing.
- Feed in wheel arch trim (2) and engage on the clips (3) .
- Engage wheel arch trim (2) in the locks on the bumper.
- Mount blind rivets (1) using the special tool 0 496 521 (00 2 230) .
