Install the trim panel for left and right the luggage compartment capping
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the trim panel for the luggage compartment capping

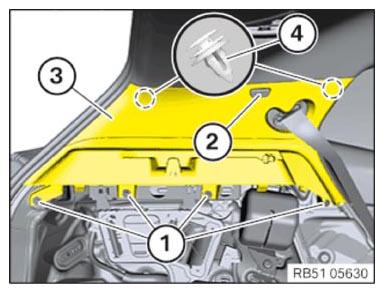

- Install the trim panel (3) of the luggage compartment capping and insert the end fitting.
- Clip the trim panel (3) of the luggage compartment capping in the clips (4) .
- Tighten screw and mount cover (2)
.TIGHTENING TORQUE SPECIFICATIONS
Trim panel of luggage compartment capping Self-tapping screw Tightening torque 4 Nm - Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Trim panel of luggage compartment capping to body | ||
|---|---|---|
| Hexagon screw | Tightening torque | 1.8 Nm |
