Install battery carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

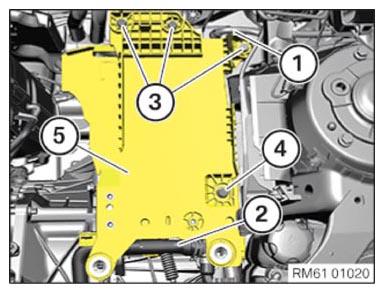

Insert and install battery carrier (5) .
Hand-tighten the bolt (4) .
Hand-tighten the bolts (3) .

Tighten down screw (4) .

TIGHTENING TORQUE SPECIFICATIONS

Battery carrier to engine mount
Hexagon screw M8x30	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (3) .

TIGHTENING TORQUE SPECIFICATIONS

Battery carrier to engine mount
Hexagon screw M8x30	tightening torque	19 Nm

Attach coolant line (2) on battery carrier (5) .
Attach cable clip (1) on battery carrier (5) .
