Connect battery ground lead
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
For additional information see:
SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY
, and
NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY
, and
NOTES ON INTELLIGENT BATTERY SENSOR (IBS)
For additional information see:
SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY
, and
NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY
, and
NOTES ON INTELLIGENT BATTERY SENSOR (IBS)
- Remove the protective cover of the positive battery terminal.

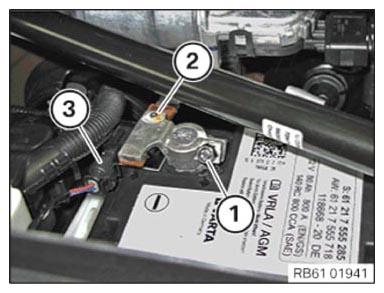

- Position battery ground lead (2) .
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Battery terminal clamp with IBS positive battery terminal/negative battery terminal Nut M6 Tightening torque 5 Nm - If required, connect the connector (3) .
