Installing the rear wheel arch trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

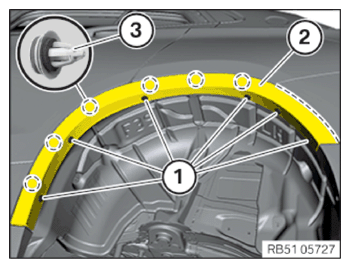

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Check the clips (3) for damage and replace where required.
The clips (3) must not be damaged or missing.
Feed in wheel arch trim (2) and engage on the clips (3).
Snap the wheel arch trim (2) into the bumper with the locks.
Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
