Installing the lower section of the rear spoiler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

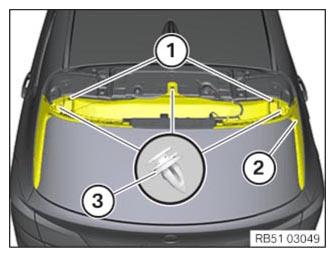

- Position the lower section of the rear spoiler (2) at the clips (3) and clip in.

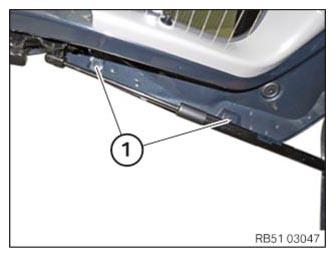

- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Lower section of rear spoiler to tailgate Fillister head bolt Tightening torque 8 Nm - Connect the quick connector of the water pipe to the washer jet.
- Connect the connector to the additional brake light.
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS

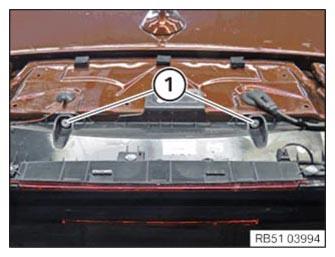

Lower section of rear spoiler to tailgate Fillister head bolt Tightening torque 8 Nm - Tighten screws (1) on left and right.TIGHTENING TORQUE SPECIFICATIONS
Lower section of rear spoiler to lateral tailgate Oval-head screw Tightening torque 2.6 Nm
Follow-up work
- Refer to ATTACHING REAR SPOILER .
- Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
