Remove rear brake pad wear sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE REAR RIGHT WHEEL .
NOTE:
TECHNICAL INFORMATION
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
When replacing the brake pad wear sensor, a CBS reset needs to be carried out.
If a brake pad wear sensor was replaced without replacing the brake pads, the following needs to be paid attention to: Carry out the service function "CBS vehicle data correction" via the diagnostic system and information system.
The brake pad wear sensor must be replaced immediately once it has been removed because the brake pad wear sensor loses retention capacity in its brake pad.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following:
The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
When replacing the brake pad wear sensor, a CBS reset needs to be carried out.
If a brake pad wear sensor was replaced without replacing the brake pads, the following needs to be paid attention to: Carry out the service function "CBS vehicle data correction" via the diagnostic system and information system.

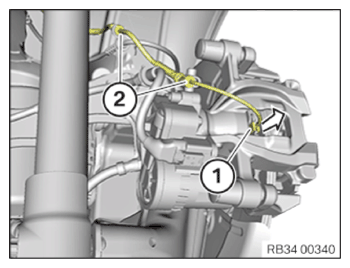

- Remove the brake pad wear sensor (1) from the brake pad in the direction of arrow.
- Detach the cable of the brake pad wear sensor (1) from the holders (2).
- Unlock plug connection (1) and disconnect.
- Detach the brake pad wear sensor from the holders (2).
