Install rear brake pad wear sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

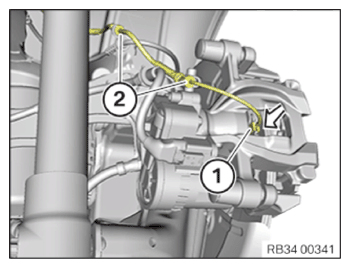

- Install the brake pad wear sensor (1) in the arrow direction in the brake pad and ensure its correct fit.
- Attach the cable of the brake pad wear sensor (1) in the holders (2).
- Connect connectors (1) and lock.
- Attach the cable of the brake pad wear sensor in the holders (2).
Follow-up work
- Refer to INSTALLING THE RIGHT REAR WHEEL .
