Installing front brake pad wear sensor (fixed caliper brake)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

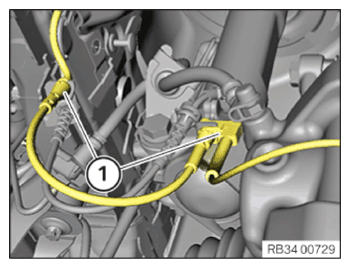

- Attach cable of the brake pad wear sensor to the holders (1).
- Install the brake pad wear sensor in the brake pad and ensure its correct fit.

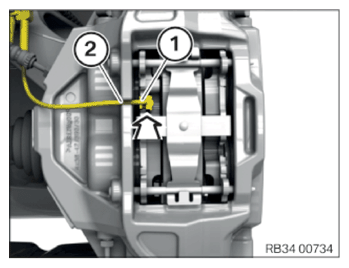

- Attach the cable of the brake pad wear sensor to the holder (2).
- Install the brake pad wear sensor (1) in the arrow direction in the brake pad and ensure its correct fit.
- Connect connectors (2) and lock.
- Attach cable of brake pad wear sensor in holders (1).
Follow-up work
- Refer to INSTALLING THE FRONT WHEEL ARCH COVER .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
