Installing the expansion tank

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

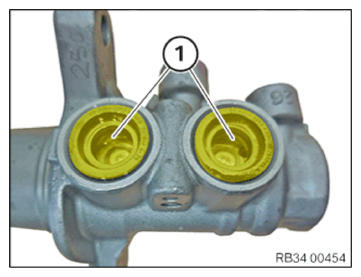

Replace rubber plugs (1).
Parts: Rubber plugs

Courtesy of BMW OF NORTH AMERICA, INC.
Connect expansion tank (1) to the tandem brake master cylinder.
Replace retaining screw.
Parts: Retaining screw
Fit retaining screw and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Retaining screw, expansion tank to tandem brake master cylinder
Replace screw.	Tightening torque	4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the water drain channel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CONNECTING THE BLEEDER UNIT FOR BRAKE FLUID (AFTER REPAIR, TOPPING UP BRAKE FLUID) .
Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID (AFTER REPAIR) .
Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
Refer to INSTALLING THE REAR HOOD SEAL .
