Install rear brake pads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

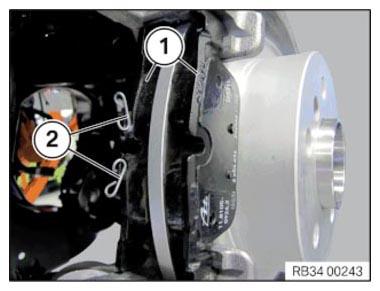

Mount brake pads (1).
Brake pad with retaining springs (2) must be installed on the piston side.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the special tool (cable strap) 2 413 317 .
Mount brake caliper (2).
Insert guide bolts and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Guide bolt (brake caliper on caliper carrier)
M8	Tightening torque	30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Mount cover plug (1).
When putting on the brake caliper, it is absolutely necessary to make sure that the T-head (1) of the outer brake pad is seated correctly on the contact surface (2).

Above all, ensure the installation position of the outer brake pad to the contact surface (2) in brake pads that have worn out partially!

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable to the bracket (2).
Position and lock the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Mount retaining spring (1).

Ensure the retaining spring is fits securely.

Courtesy of BMW OF NORTH AMERICA, INC.
