Precision-turning both front brake discs on both sides (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Always precision-turn both sides of both brake discs on one axle.

Maximum machining dimension per friction ring side is 0.8 mm!

Minimum brake disc thickness (MIN TH)

Brake discs of M models (Compound brake discs) must not be machined!

Only one brake pad set may be used up on brake discs which have been lathe-turned to minimum thickness (MIN TH).

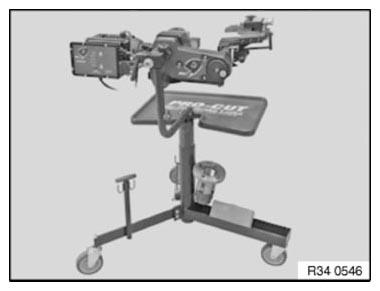

Mobile brake disc lathe:

Attention!

Only BMW-approved brake disc lathes may be used!

In the case of mobile brake disc lathes, the brake caliper and the caliper carrier must be removed.

The brake discs remain on the vehicle.

Please refer to the equipment manufacturer's operating instructions for the exact procedure.

Courtesy of BMW OF NORTH AMERICA, INC.

After the precision turn of the brake disc, the difference in thickness must be measured at 8 different points (1) approx. 10 mm (dimension A) from the outer edge of the disc using a caliper gauge (2)!

Permissible thickness difference: see FRONT BRAKES TECHNICAL DATA !

Courtesy of BMW OF NORTH AMERICA, INC.
