Replacing left or right tie rod (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 287 009

CAUTION: If the surface of the rack is damaged (e.g. due to corrosion), the steering gear must be replaced!

Necessary preliminary work:

Refer to REMOVING CONTROL ARM .

Removal:

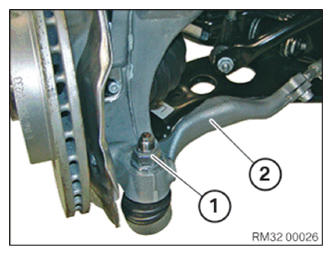

Slacken nut (1).

Release tie rod (2) from swivel bearing.

G15170177

Courtesy of BMW OF NORTH AMERICA, INC.

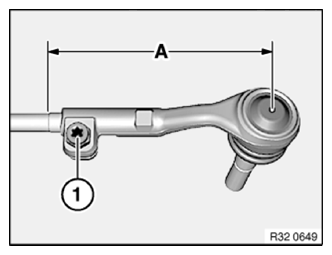

Determine dimension (A) to simplify following adjustment of front axle

Slacken clamping bolt (1) and screw off tie rod end.

G15170178

Courtesy of BMW OF NORTH AMERICA, INC.

Before removal, clean the tie rod, gaiter and the area around the gaiter in order to prevent the ingress of dirt!

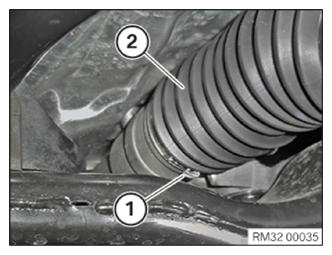

Release EAR CLIP (1).

Pull off the gaiter (2) from the steering gear.

G15170179

Courtesy of BMW OF NORTH AMERICA, INC.

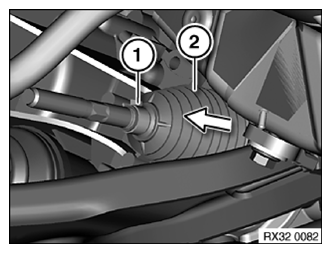

Loosen the clip (1).

Detach gaiter (2) from tie rod.

G15170180

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To avoid damage to the rack and to the suspension mounting, move out the rack only as far as necessary!

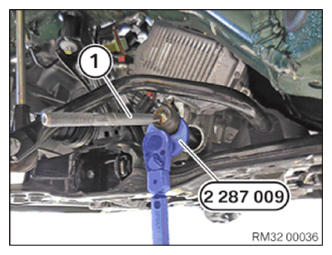

Release the tie rod (axial joint) from the rack of the steering gear by means of special tool 2 287 009.

G15170181

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Unscrew the tie rod end from the new tie rod.

Screw the tie rod (axial joint) onto the rack.

Tighten the tie rod (axial joint) by means of special tool 2 287 009.

Tightening torque 32 21 3AZ .

G15170182

Courtesy of BMW OF NORTH AMERICA, INC.

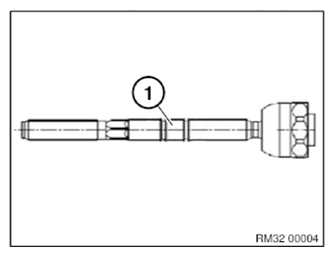

Grease tie rod at the fit of the gaiter (1) with grease "FB-1 part number 2 208 093".

G15170183

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing the gaiter, lightly grease the steering gear at the seat of the gaiter with FB-1 lubricating grease.

Mount the gaiter (2) to the steering gear.

Part: Replace the ear clamp (1).

Secure the EAR CLAMP (1).

G15170184

Courtesy of BMW OF NORTH AMERICA, INC.

Position the gaiter (2) on the tie rod.

Secure the clip (1).

G15170185

Courtesy of BMW OF NORTH AMERICA, INC.

Screw the tie rod end onto the tie rod until dimension (A) is reached.

G15170186

Courtesy of BMW OF NORTH AMERICA, INC.

Insert tie rod (2) into the swivel bearing.

Part: Replace nut (1).

Tighten nut (1).

Tightening torque 32 21 1AZ .

G15170187

Courtesy of BMW OF NORTH AMERICA, INC.

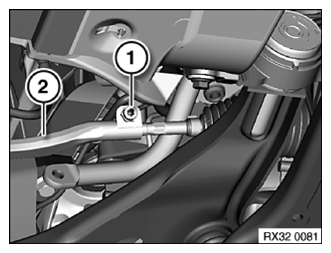

Tighten clamping bolt (1).

Tightening torque 32 21 2AZ .

G15170188

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING CONTROL ARM .
Refer to CARRYING OUT WHEEL ALIGNMENT PROCEDURE .
