Replacing gaiter for steering gear on left or right (X2 2018-2023)

Necessary preliminary work:

• Refer to REMOVING FRONT WHEEL .
• Refer to REMOVING FRONT UNDERBODY PROTECTION .

Removal:

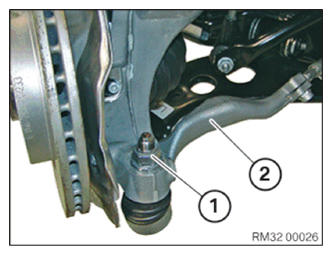

Slacken nut (1).

Release tie rod (2) from swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Mark thread depth of tie rod end to simplify subsequent adjustment of front axle.

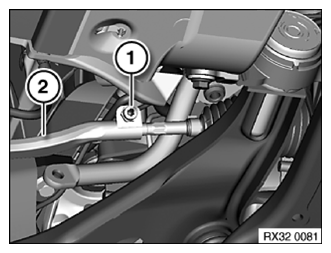

Release screw (1).

Unscrew tie rod end (2).

• Counterhold tie rod with open-end spanner if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Before removal, clean the tie rod, gaiter and the area around the gaiter in order to prevent the ingress of dirt!

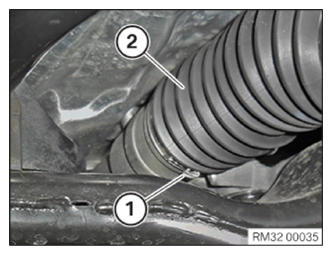

Release EAR CLIP  (1).

Courtesy of BMW OF NORTH AMERICA, INC.

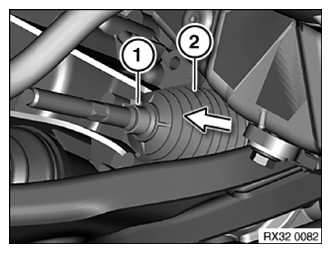

Release band clamp (1) and detach gaiter (2) from tie rod.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

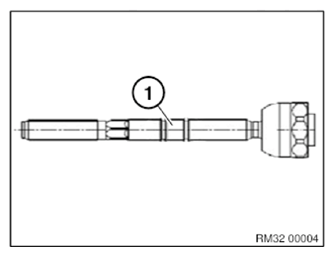

Grease the tie rod at the seat of the gaiter (1) with FB-1 lubricating grease, part number 2 208 093".

• This ensures that the gaiter is not rotated when the tie rod is rotated.

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing the gaiter, lightly grease the steering gear at the seat of the gaiter with FB-1 lubricating grease.

Position the gaiter (2) on the steering gear.

Part:  Release ear clip (1).

Mount EAR CLAMP  (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position the gaiter (2) on the tie rod.

Mount the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Screw the tie rod end (2) onto the tie rod up to the mark.

• Counterhold tie rod with open-end spanner if necessary.

Tighten screw (1).

Tightening torque 32 21 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Keep tie rod end to swivel bearing connection clean and free from oil and grease.

Insert tie rod (2) into swivel bearing.

Part:  Replace nut (1).

Tighten nut (1).

Tightening torque 32 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING FRONT WHEEL .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING WHEEL ALIGNMENT PROCEDURE .
