Flushing and bleeding the clutch hydraulic system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

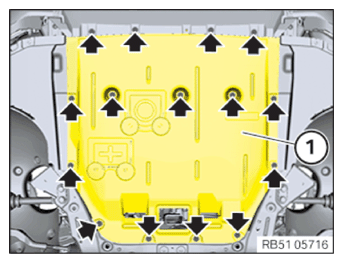

Removing the front underbody protection

Remove screws (arrows).
Thread out and remove the front underbody protection (1) from the bumper panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with metal underrate protection:
Loosen screws (1) and (2).
Thread out and remove the underrate protection (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the dust cap from the vent valve (1).
Connect the vent hose (2) with the collecting vessel to the vent valve (1) on the clutch slave cylinder.
Open the vent valve (1) and purge it until clear, bubble-free brake fluid emerges.
Close vent valve (1).

TIGHTENING TORQUE SPECIFICATIONS

Bleed valve for clutch slave cylinder
	tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front underbody protection

Guide the front underbody protection (1) in under the bumper panel and position it at the screw points.
Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection front
Screw for thermoplastic plastic	Tightening torque	2.6 Nm
Hexagon screw M6x20	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with metal underrate guard:
Guide in and attach the underrate guard (3).
Tighten down screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection front
Screw for thermoplastic plastic	Tightening torque	2.6 Nm
Hexagon screw M6x20	Tightening torque	8 Nm
