51 48 060 Removing and installing/replacing sound insulation in left or right front door (2' Series coupe and convertible, 2017-2021)

Attention!

INSTRUCTIONS FOR SOUND INSULATION are an essential part of these repair instructions and must be followed without fail.

Do not detach sound insulation in jerks (risk of damage).

Ensure watertightness of sound insulation after every repair (water ingress).

Necessary preliminary tasks:

Refer to REMOVING DOOR TRIM PANEL .

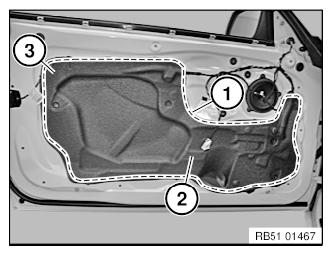

NOTE: Position of sealing bead (1).

If necessary, maneuver out sound insulation (2) at cable (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

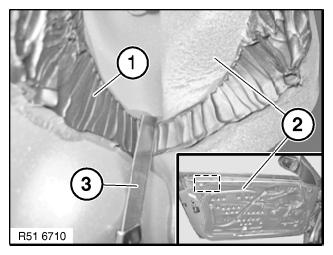

When cutting through sealing bead (1), do not damage sound insulation (2) and if necessary cable.

With a suitable sharp cutting tool (3) cut through sealing bead (1) of sound insulation (2) in the area to be detached.

Courtesy of BMW OF NORTH AMERICA, INC.

When refitting:

Damaged sound insulation must be replaced.

Lay butyl rope with 0 4 mm (sourcing reference: BMW Parts Department) onto the original butyl rope.

Replacement:

Remove residual butyl at the door and clean the adhesive area.

Air drying time: 1 minute

Attention!

Bonding surfaces must be dry and free of dust and grease.

Once it has been cleaned, do not touch the adhesive area with bare hands.

Lay 6 mm dia. butyl rope (sourcing reference: BMW Parts Department) in specified adhesive area onto the sound insulation.

NOTE: Position of butyl rope (1) on sound insulation (2).

Courtesy of BMW OF NORTH AMERICA, INC.

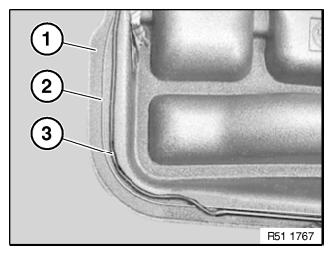

NOTE: A mark (2) is provided all round on the sound insulation (1).
Butyl rope (3) rests on or inside the marking (2).
Heat butyl rope (3) (hot air blower) and press sound insulation (1) on firmly all-round.
Contact pressure with hand roller: approx. 20 N/cm2
Manual contact pressure: approx. 10 N/cm2

NOTE: Firm thumb pressure has approx. 30 N/cm2

Courtesy of BMW OF NORTH AMERICA, INC.
