Removing and installing/replacing speaker cover on front left or right door trim panel (2' Series coupe and convertible, 2017-2021) (2' Series coupe and convertible, 2017-2021)
Special tools required:
- 00 9 327

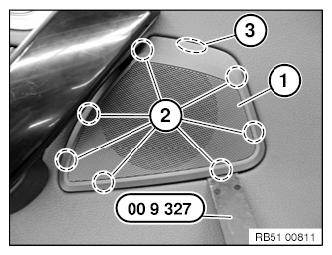

Detach speaker cover (1) with special tool 00 9 327 from the bottom starting at latch mechanisms (2).
Feed out speaker cover (1) downwards out of guide (3).
Installation note:
In a first step, feed in the speaker cover (1) with the guide (3) and then clip into the latch mechanisms (2).
Installation note:

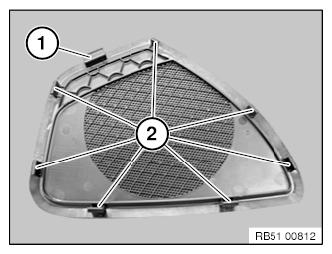

Guide (1) and latch mechanisms (2) must not be damaged.
