51 16 160 Removing and installing/replacing center console cover (2' Series coupe and convertible, 2017-2021)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary work:

• Refer to REMOVING DECORATIVE TRIM ON CENTER CONSOLE .

Manual gearbox only:

• Refer to REMOVING GAITER .

With automatic transmission only:

• Refer to REMOVING COVER FOR SELECTOR LEVER .

Only for model facelift (LCI) vehicles:

• Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .

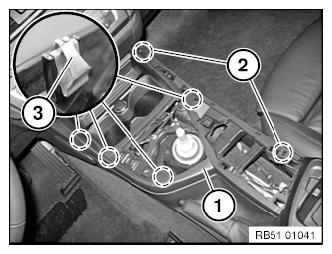

Release cover (1) at latch mechanisms (2) and clamps (3).

Slightly raise the cover (1) and disconnect associated plug connection.

Feed out cover (1) toward the top/rear.

Courtesy of BMW OF NORTH AMERICA, INC.

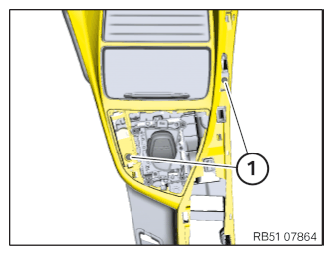

Only for model facelift (LCI) vehicles:

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

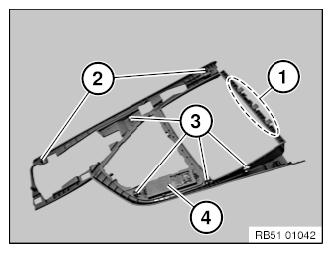

Installation note:

The following parts must not be damaged or missing:

• Guides (1)
• Latch mechanisms (2)
• Clamps (3)

Replacement:

Remount THE OPERATING FACILITY IN THE CENTER CONSOLE (4)

Courtesy of BMW OF NORTH AMERICA, INC.
