51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right (2' Series coupe models)

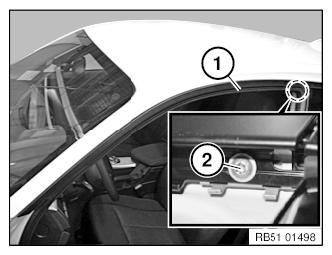

Pull off edge protection (1) in marked area and unscrew the screw (1) below it.

Courtesy of BMW OF NORTH AMERICA, INC.

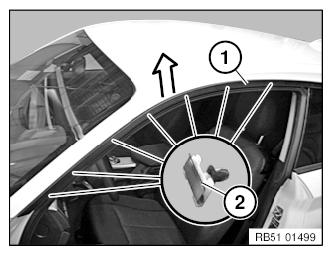

Unclip trim strip (1) from clamps (2) in direction of arrow starting at the front.

Installation note:

To avoid leaks and noises, check all clips (2) for visible damage.

Replace faulty clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

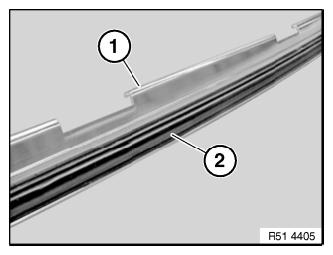

Make sure sealing strip (2) is correctly fitted on trim strip (1).

Sealing strip (2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
