Replacing drive belt for coolant pump (S55 Engine) (2019-2022)

Necessary preliminary work:

• Remove RIGHT INTAKE FILTER HOUSING .
• Remove FAN COWL .

Removal:

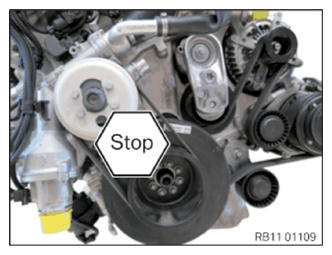

Danger of injury!

Releasing  the screw connection on the coolant pump belt pulley only permitted in installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

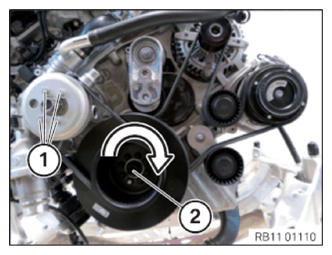

Rotate engine in direction of engine rotation  on the

central bolt (2) until the belt pulley of the coolant pump is de-energized.

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Slackening of the belt pulley is sudden and causes a loud noise (danger of injury)!

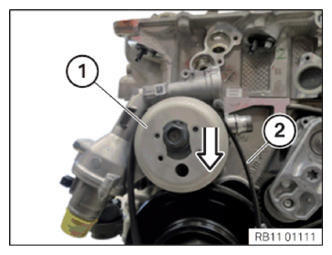

Continue to rotate engine in direction of engine rotation  on the central bolt until the belt pulley is slackened  (see illustration).

Pull drive belt (2) out and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Belt pulley (1) is tension-free (see illustration).

Installation note:

Check drive belt for correct installation position  and, if reusing, observe direction of rotation. (risk of damage).

Insert and install the drive belt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate engine in direction of arrow  on the central bolt (2) until the drive belt is tightened  on the belt pulley.

Tighten down screws (1).

Tightening torque: 11 53 7AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install FAN COWL .
• Install RIGHT INTAKE FILTER HOUSING .
