Removing and installing/replacing carbon strut (2016-2022)

Attention!

Driving without carbon strut is not permitted! (risk of damage to the body).

Necessary preliminary work:

• Remove LEFT AND RIGHT COVER IN ENGINE COMPARTMENT .

Removal:

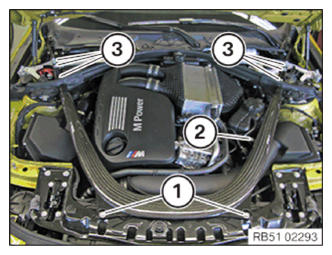

Release the screws (1 to 3).

Feed out the carbon strut.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in the carbon strut.

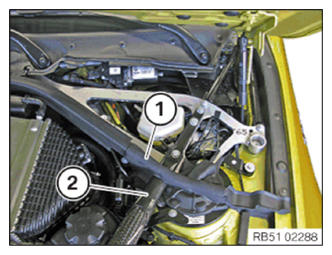

Tighten down the screws (1).

Tightening torque 51 61 11AZ .

Tighten down screw (2).

Tighten down the screws (3).

Tightening torque 51 61 12AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• INSTALL LEFT AND RIGHT COVER IN ENGINE COMPARTMENT .
