Removing and installing/replacing right luggage compartment wheel arch panel (2016-2022)

Special tools required:

• 009325

Necessary preliminary tasks:

• Remove COVER FROM TAIL PANEL .
• Fold down backrest of right rear seat

Version with lashing eye  :

Lever out cover (1) and release screw underneath.

Tightening torque 51 47 1AZ .

Remove lashing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version with charging socket  :

Lever out charging socket (1) in direction of arrow and disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with oddments tray  :

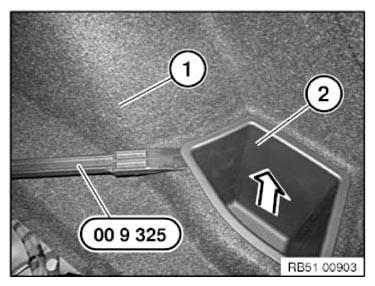

Unclip oddments tray (2) from wheel arch panel (1) using special tool 00 9 325.

Courtesy of BMW OF NORTH AMERICA, INC.

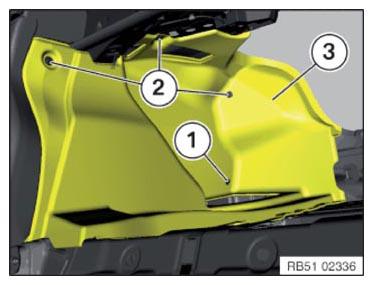

Pull out and detach fuel tank release (1).

Release clamps (2).

Feed out wheel arch panel (3).

Installation note:

Replace faulty clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

Unclip tensioning strap (1).

Detach luggage compartment net (2) at holder (3).

Release lock washer (4) and feed out luggage compartment net (2).

Unscrew holder (3).
