Removing and installing/replacing ornamental grille for bumper panel (center) (2016-2022)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL .

Removal:

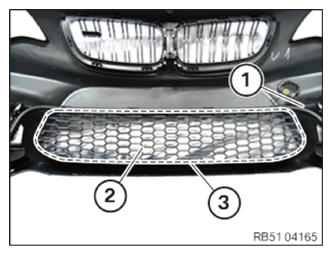

Detach the hose pipe (1).

Release ornamental grille (2) from all latch mechanisms (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in ornamental grille (2) with all latch mechanisms (3).

Attach the hose pipe (1).

Courtesy of BMW OF NORTH AMERICA, INC.
