Remove rear thrust field
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
For additional information see: REMOVING THE STIFFENING PLATE .
Different variants may be installed depending on the vehicle equipment.
For additional information see: REMOVING THE STIFFENING PLATE .

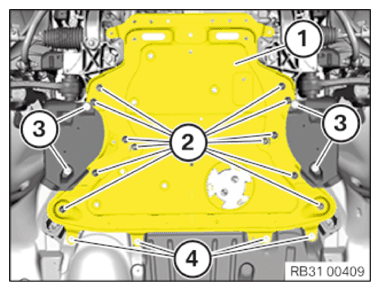

- Loosen screws (3) and (4) .
- Loosen screws (2) .
- Remove thrust field (1) .
