Connecting the coolant lines of the exhaust turbocharger

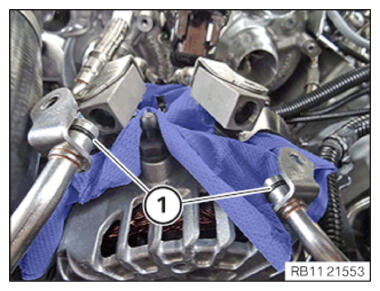

• Check the seals (1)  for damage, replace them if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

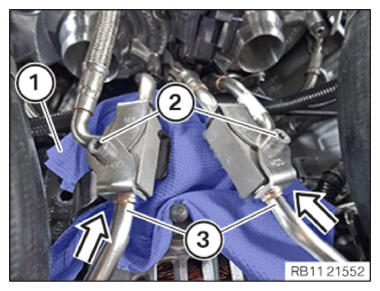

• Connect the coolant lines (3)  in the direction arrowed.
• Tighten down screws (2)  .

TIGHTENING TORQUE SPECIFICATIONS

Coolant line from exhaust turbocharger to bracket
M6x30	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the lint-free rags (1)  .
