Removing right luggage compartment wheel arch trim panel
Preliminary work
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE STORAGE TRAY .
- Refer to REMOVING THE STORAGE TRAY FOR THE COMPACT SPARE WHEEL .
- Refer to REMOVING THE LOADING EDGE TRIM .
Removing right luggage compartment wheel arch trim panel

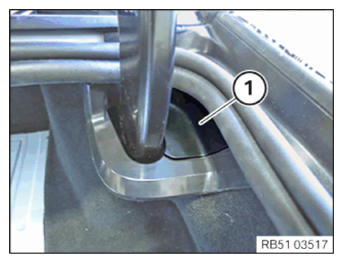

- Remove the cover (1) towards the top.

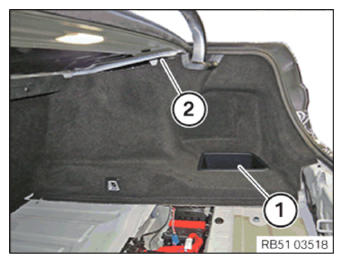

- Lever out the storage compartment (1) towards the top.
- Remove the expanding rivet (2).

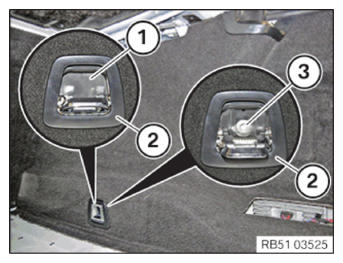

- Lever out and remove the trim (1) in the lashing point (2) at the recess.
- Loosen screw (3) and remove lashing point (2).
- Remove the luggage compartment wheel arch trim panel.
