Installing rear door trim panel

• Attach the Bowden cable (1) for the release lever on the door lock (3).
• Attach the Bowden cable (1) for the release lever on the counter support (2).
• Connect the connector, clip in the wiring harness (4) and install the door trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

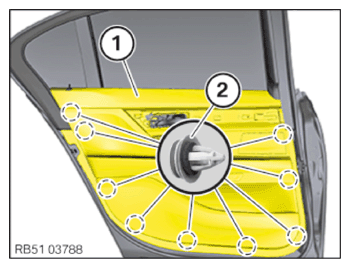

• Feed in upper door trim panel (1).
• Clip the door trim panel (1) into the clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

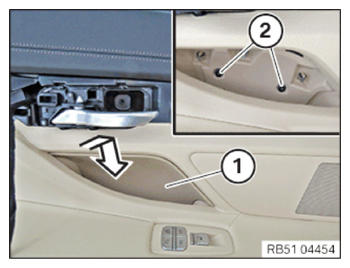

• For G11:  Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Door trim panel
  Screw	Tightening torque	3 Nm

• Install cover (1) and engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

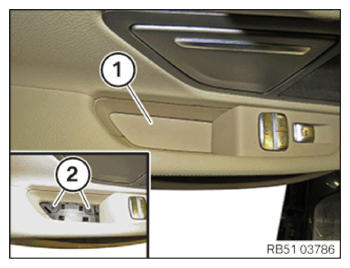

• For G12:  Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Door trim panel
  Screw	Tightening torque	3 Nm

• Install cover (1) and engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

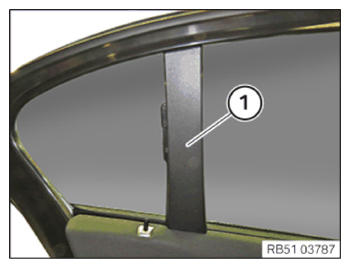

• Install trim (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE STRIP ON THE REAR DOOR TRIM PANEL  .
