Install front door trim panel

• Attach the Bowden cable (1) for the release lever on the door lock (3).
• Attach the Bowden cable (1) for the release lever on the counter support (2).
• Connect connector.
• Clip in the wiring harness (4) and install the door trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

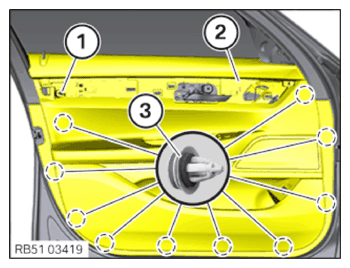

• Clip the door trim panel (2) into the clips (3).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Door trim panel
  Screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

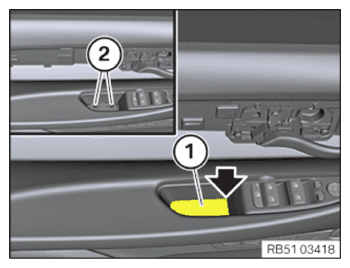

• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Door trim panel
  Screw	Tightening torque	3 Nm

• Install cover (1) and engage.

Engage the cover at the marked location (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE STRIP ON THE DOOR TRIM PANEL .
• Refer to INSTALLING THE MIRROR TRIANGLE COVER .
