Installing the wiring harness section for the ignition control for cylinders 1 to 6

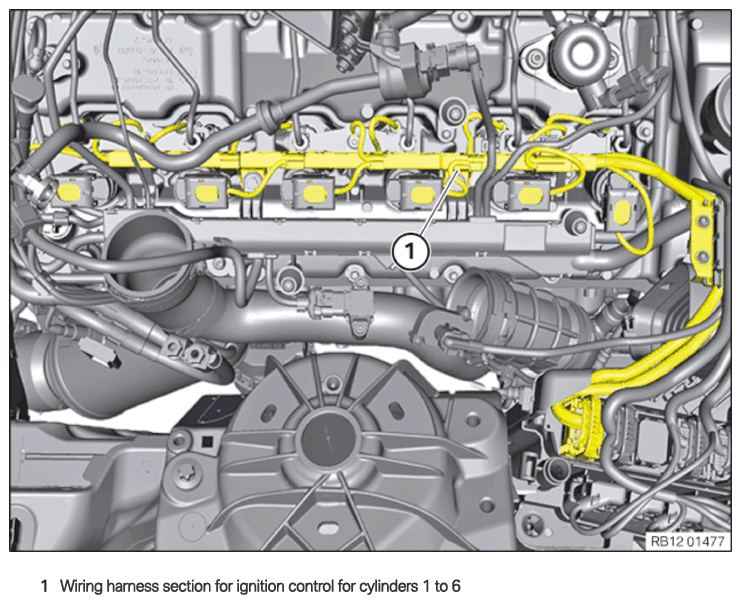

Wiring harness section for ignition control for cylinders 1 to 6
NOTE:
RISK OF DAMAGE
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
Malfunction or failure of the DME.
Grounding points that are not screwed on may lead to malfunction or failure of the DME.
- Screw all screw points of the cable ducts on again. Some of the screw points are also grounding points.

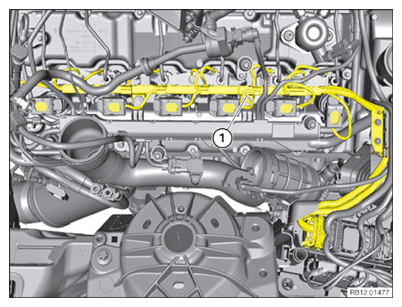

- Feed in and install the wiring harness section (1)
for the ignition control for cylinders 1 to 6.

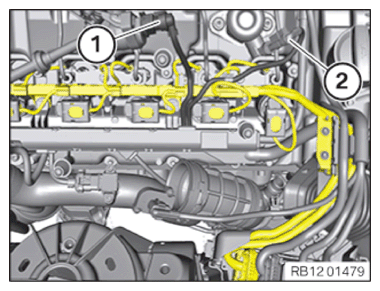

- Feed in the wiring harnesses (2) at the cylinder head cover.
- Position connector (3) on the high pressure pump.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct to cylinder head cover/cylinder head | ||
| M6 screw | tightening torque | 10 Nm |
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

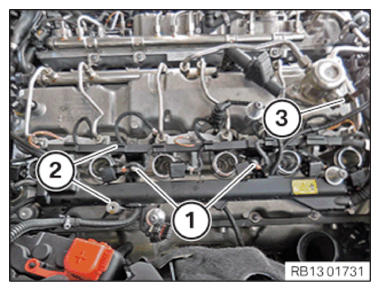

- Connect all connectors (1) to the injectors and lock audibly.
- Connect ground cable to ground pin and tighten the nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable on cylinder head cover/ground pin | ||
| Nut M5 | tightening torque | 4.6 Nm |
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Check all connectors (1)
on the injectors again to ensure they are correctly fitted.
The connector must be noticeably engaged.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Push connector (1) onto the ignition coil with the connector fastener (2) open.
- Carefully close the connector fastener (2)
in the direction of the arrow.
The connector fastener must snap into place in the correct position without great effort.
- Connect the connector (1) to the right-hand tank vent valve and lock.
- Connect the connector (2) to the right-hand high pressure pump and lock.
Follow-up work
- Refer to CONNECTING ALL THE CONNECTORS TO THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 AND TO THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE RIGHT THROTTLE BODY .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
