Removing the center firewall lower part

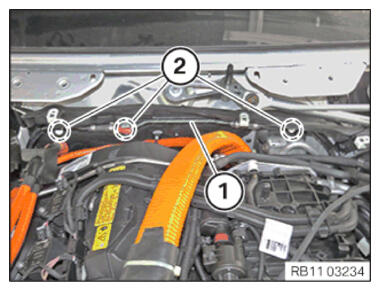

Unclip vacuum line (1) from the clamps (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

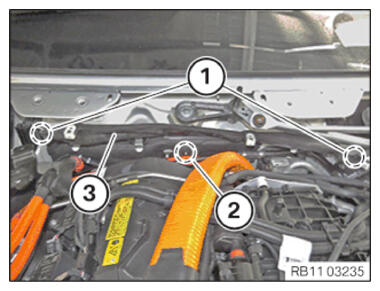

Loosen screws (1) .
Loosen nut (2) .
Remove the center cowl lower part (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
