Install clean air pipe

Prepare clean air pipe

• Check the sealing ring of the clean air tube on top for damage and replace if necessary.

  Parts:  Sealing ring

• Checking clean air pipe for cleanliness, and clean of oil residue.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check sealing ring for damage at the exhaust camshaft sensor, replace if necessary.

  Parts:  Sealing ring

• Checking clean air pipe for cleanliness, and clean of oil residue.

Courtesy of BMW OF NORTH AMERICA, INC.

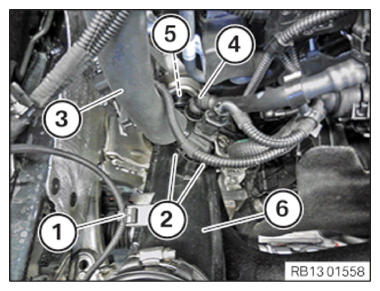

• Feed in clean air pipe (6) and install.

  The clamp (5) must engage audibly.

• Insert and install the tank vent line (4).

  The tank vent line (4) must engage audibly.

• Insert and install the engine ventilation line (3).

  The locks (2) must engage audibly.

• Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
