Installing intake silencer housing

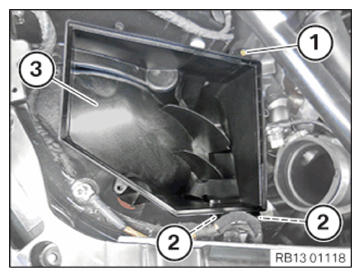

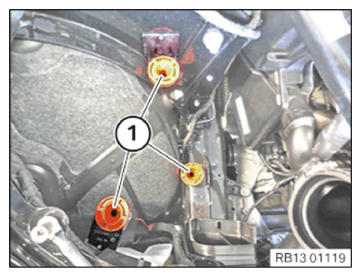

- Check rubber mount (1) for correct fit.
- Insert the intake silencer housing lower part (3) and latch into the rubber mount.
- If installed: Mount clamps (2).
The clamps (2) must engage audibly into the lower section of the intake filter housing (3).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS

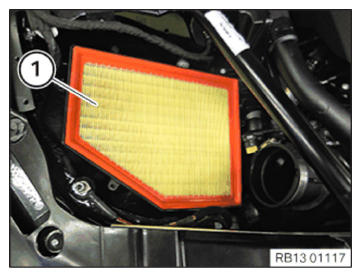

Intake silencer housing to resonator TS5x20 Tightening torque 2.5 Nm - Install the air filter insert (1).

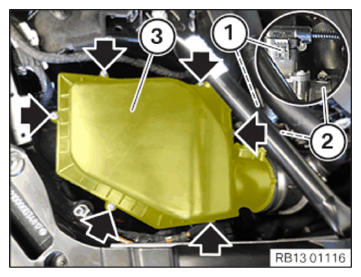

- Insert and install the upper section of the intake filter housing (3).
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Intake filter housing upper section to intake filter housing lower section TS5x20/TS5x26 Tightening torque 2.5 Nm - Tighten clamp (2).TIGHTENING TORQUE SPECIFICATIONS
Clean air pipe to upper section of intake filter housing cl. Tightening torque 3 Nm - Connect and lock the connector (1).
The connector (1) must engage audibly.
