Installing the right throttle body

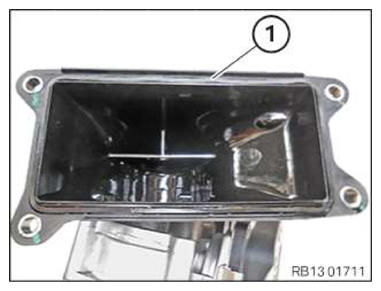

• Replace the gasket (1) on the air duct.

  Parts  : Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

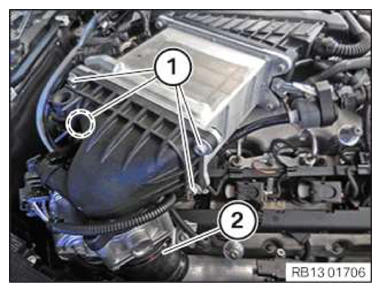

• Insert the throttle body into the charge air pipe (2).
• Mount the throttle body to the charge air cooler.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Throttle body to charge air cooler
  M6x22	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

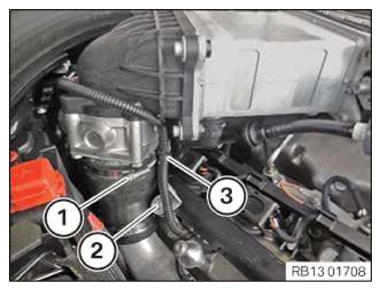

• Tighten clamp (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Throttle body to charge air pipe
  cl.	Tightening torque	3.3 Nm

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Throttle valve assembly to cylinder head cover
  M6	Tightening torque	10 Nm

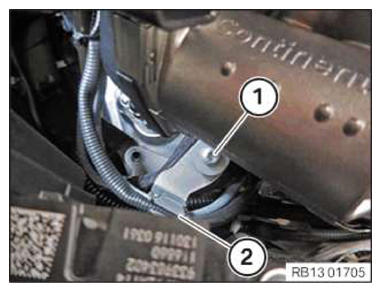

• Mount the cable (3) to the throttle body.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) below the throttle body.
  TIGHTENING TORQUE SPECIFICATIONS



  Throttle valve assembly to cylinder head cover
  M6	Tightening torque	10 Nm

• Fasten the cable with the clamp (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

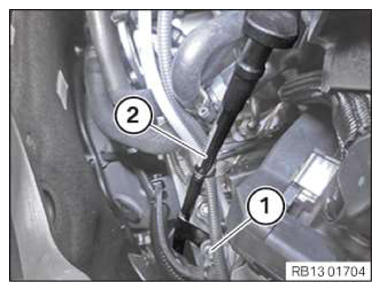

• Mount the oil dipstick tube (2) on the cylinder head cover.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Oil dipstick tube on cylinder head cover
  M8	Tightening torque	18 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

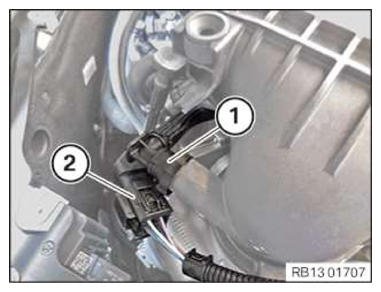

• Connect the tank ventilation line (1) to the air routing and lock audibly.
• Connect the connector (2) to the throttle body and lock it audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
