Remove fan cowl

Preliminary work

• Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
• Refer to REMOVING BOTH FRONT-END STRUTS .
• Refer to REMOVING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
• Refer to REMOVING THE REAR TOP CROSS CONNECTION .

Precondition

Ignition is switched off.

• Loosen screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect the connector (1)  from the fan cowl.
• Unlock the connector (2)  and detach from the coolant temperature sensor.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the clamps (1)  for the coolant hose from the fan cowl.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release clamps (1)  at left on the fan cowl.
• Lay the cable to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• If fitted:

  Release the left coolant line (1)  at the fan cowl from the clamps (2)  and place to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

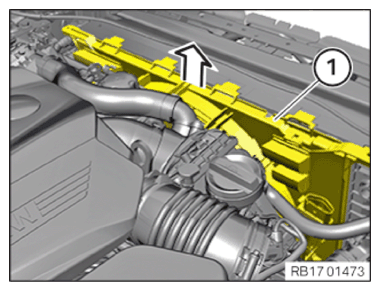

• Feed out fan cowl (1)  upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
