Remove luggage compartment wheel arch trim panel on left

Preliminary work

• Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE STORAGE TRAY .
• Refer to REMOVING THE STORAGE TRAY FOR THE COMPACT SPARE WHEEL .
• Refer to REMOVING THE LOADING EDGE TRIM .

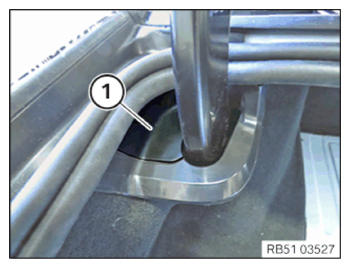

• Remove the cover (1) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove luggage compartment wheel arch trim panel on left.

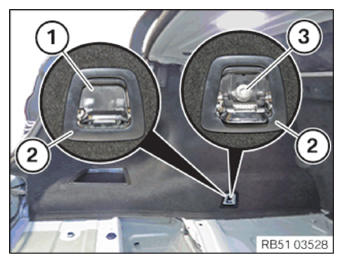

• Lever out and remove trim (1) in lashing point (2) at recess.
• Release screw (3) and remove lashing point (2).
• Remove the luggage compartment wheel arch trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

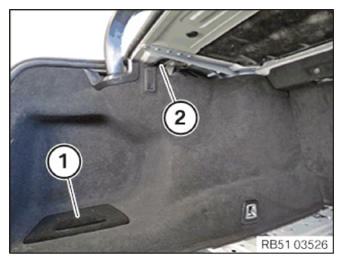

• Lever the lid (1) of the storage compartment up and out.
• Remove the expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.
